Plot Assay Values Colored by a Variable — assay_by

This function by deafault creates a stacked bar plot, where the x-axis represents assay measurements (either MIC, Minimum Inhibitory Concentration) or disk diffusion zones values), the y-axis indicates their frequency, and the bars are colored by a variable indicated using colour_by (by default, colours indicate whether the assay value is expressed as a range or not). Plots can optionally be faceted on an additional categorical variable. Optionally, the data can be plotted as a grouped bar plot instead, with the assay measures shown on the y-axis, grouped and coloured by the colour_by variable, by setting barplot = TRUE. If breakpoints are provided, or species and drug are provided so we can extract breakpoints, lines indicating the S/R breakpoints (solid lines) and ECOFF (dashed line) will be added to the plot (and printed in the subtitle).

Usage

assay_by_var(
  pheno_table,
  pheno_drug = NULL,
  measure = "mic",
  colour_by = NULL,
  colours = NULL,
  facet_by = NULL,
  bp_site = NULL,
  bp_S = NULL,
  bp_R = NULL,
  bp_ecoff = NULL,
  species = NULL,
  guideline = "EUCAST 2025",
  bp_colours = c(S = "grey", R = "grey", E = "grey"),
  measure_axis_label = "Measurement",
  y_axis_label = "Count",
  colour_legend_label = NULL,
  plot_title = NULL,
  boxplot = FALSE,
  group_by = NULL,
  facet_nrow = NULL,
  facet_ncol = NULL
)

Arguments

pheno_table: Phenotype table in standard format as per import_pheno().
pheno_drug: (optional) Name of a drug to filter the drug column, and to retrieve breakpoints for.
measure: Name of the column with assay measurements to plot (default "mic").
colour_by: (optional) String giving the name of a column whose values should be used to colour data points (default NULL, which will colour each data point to indicate whether the value is expressed as a range or not).
colours: (optional) Manual colour scale to use for bar plot. If NULL, and colour_by variable is of class sir, bars will by default be coloured using standard SIR colours.
facet_by: (optional) String giving the name of a column containing a variable to facet on (default NULL).
bp_site: (optional) Breakpoint site to retrieve (only relevant if also supplying species and antibiotic to retrieve breakpoints, and not supplying breakpoints via bp_S, bp_R, ecoff).
bp_S: (optional) S breakpoint to plot.
bp_R: (optional) R breakpoint to plot.
bp_ecoff: (optional) ECOFF breakpoint to plot.
species: (optional) Name of species, so we can retrieve breakpoints to print at the top of the plot to help interpret it.
guideline: (optional) Guideline to use when looking up breakpoints (default 'EUCAST 2025').
bp_colours: (optional) Manual colour scale for breakpoint lines (default c(S = "grey", R = "grey", E = "grey")).
measure_axis_label: (optional) String to label the measurement axis (x-axis for histogram, y-axis for boxplot, default "Measurement").
y_axis_label: (optional) String to label the y-axis in histogram plot (default "Count").
colour_legend_label: (optional) String to label the colour legend (default NULL, which results in plotting the variable name specified via the 'colour_by' parameter). Also used to label the x-axis if boxplot=TRUE.
plot_title: (optional) String to title the plot (default indicates whether MIC or disk distribution is plotted, prefixed with the antibiotic name if provided, e.g. 'Ciprofloxacin MIC distribution')
boxplot: (optional) If TRUE, plot the data as a grouped boxplot of assay measures, grouped by the group_by variable and coloured by the colour_by variable. Summary statistics (median, geometric mean, and interquartile range of assay measures) are also computed, stratified by the group_by and facet_by variables.
group_by: (optional, only used if boxplot=TRUE) String giving the name of a column whose values should be used to group boxes by (default NULL, in which case the colour_by variable will be used for grouping also).
facet_nrow: (optional) Number of rows for the facet grid (not used unless facet_by is provided).
facet_ncol: (optional) Number of columns for the facet grid (not used unless facet_by is provided).

Value

If boxplot=FALSE, the plot is returned as a single unnamed value. If boxplot=TRUE, the plot is returned ($plot) along with the summary statistics ($stats).

Examples

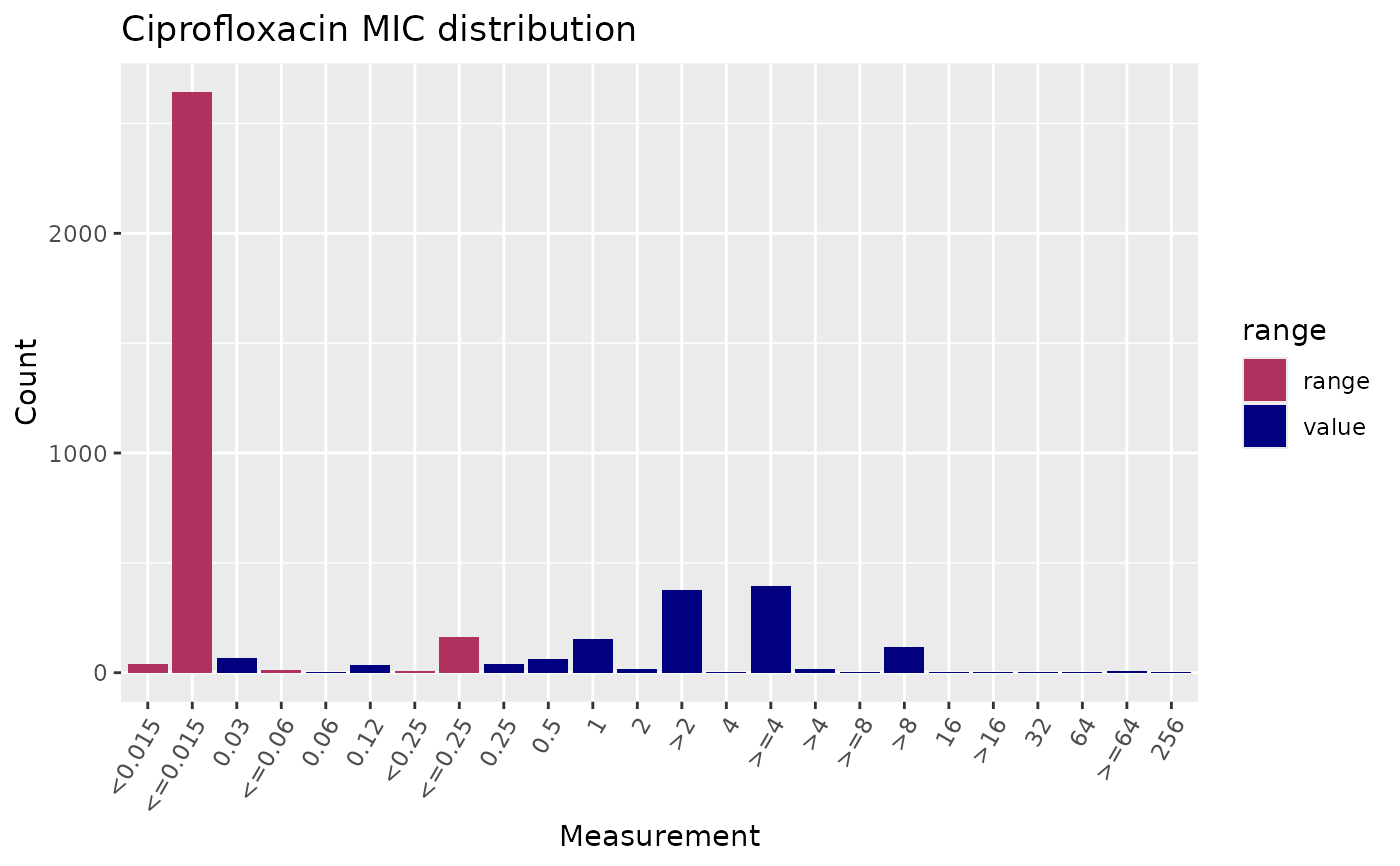

# plot MIC distribution, highlighting values expressed as ranges
assay_by_var(
  pheno_table = ecoli_pheno, pheno_drug = "Ciprofloxacin",
  measure = "mic"
)


# colour by SIR interpretation recorded in column 'pheno_clsi'
assay_by_var(
  pheno_table = ecoli_pheno, pheno_drug = "Ciprofloxacin",
  measure = "mic", colour_by = "pheno_clsi"
)

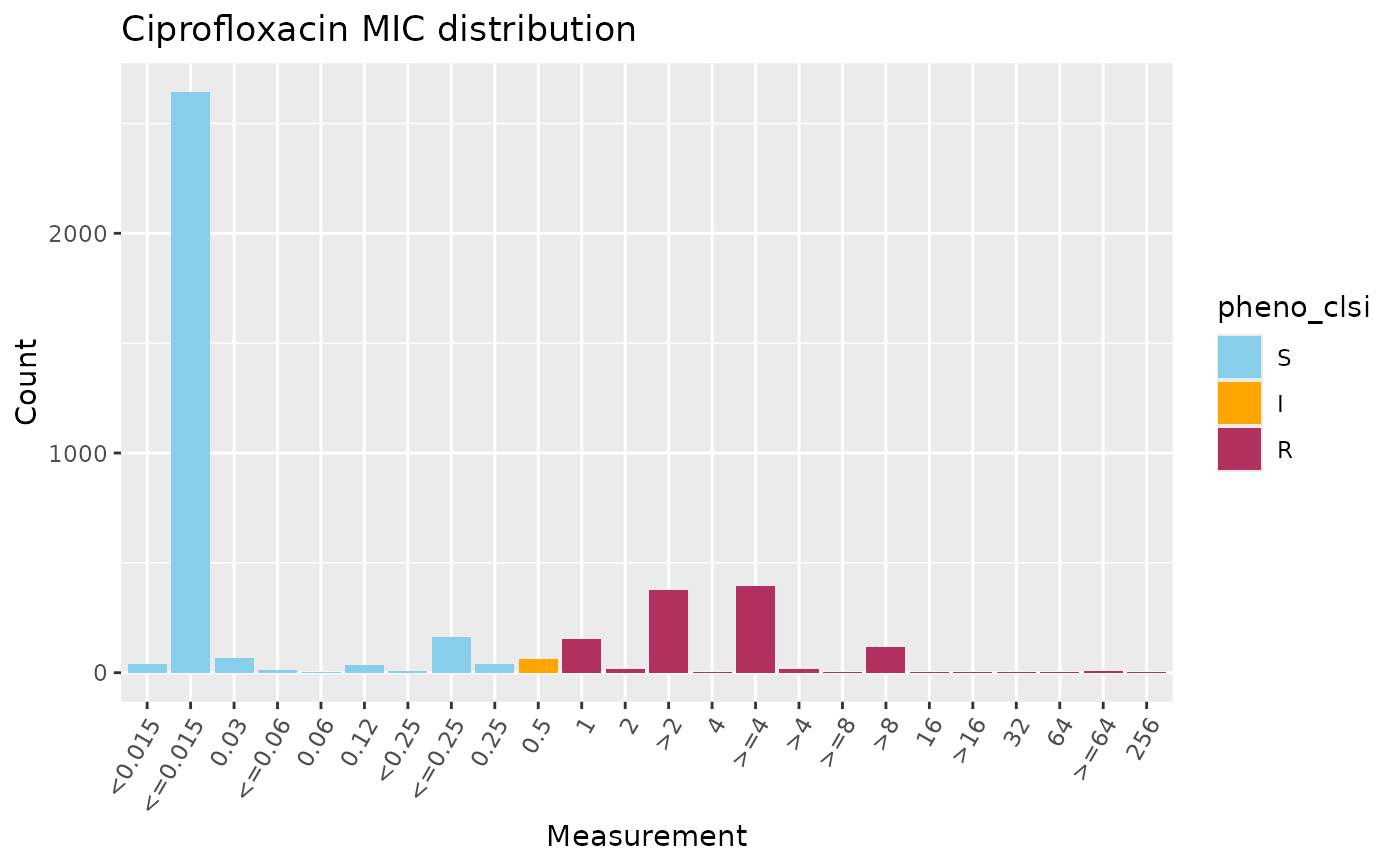

# manually specify colours for the barplot
assay_by_var(
  pheno_table = ecoli_pheno, pheno_drug = "Ciprofloxacin",
  measure = "mic", colour_by = "pheno_clsi",
  colours = c(S = "skyblue", I = "orange", R = "maroon")
)

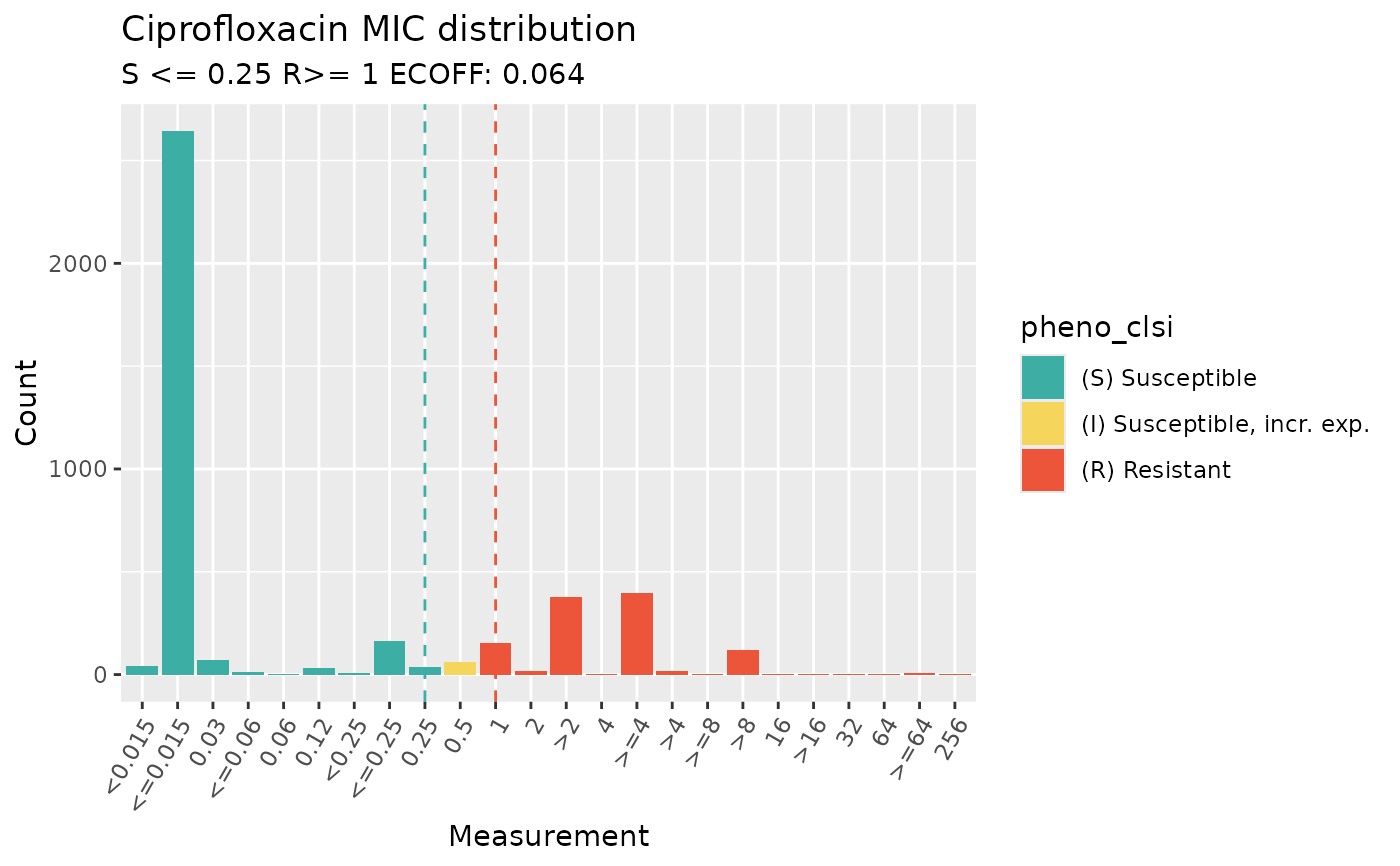

# look up ECOFF and CLSI breakpoints and annotate these on the plot
assay_by_var(
  pheno_table = ecoli_pheno, pheno_drug = "Ciprofloxacin",
  measure = "mic", colour_by = "pheno_clsi",
  species = "E. coli", guideline = "CLSI 2025"
)
#>   MIC breakpoints determined using AMR package: S <= 0.25 and R > 1

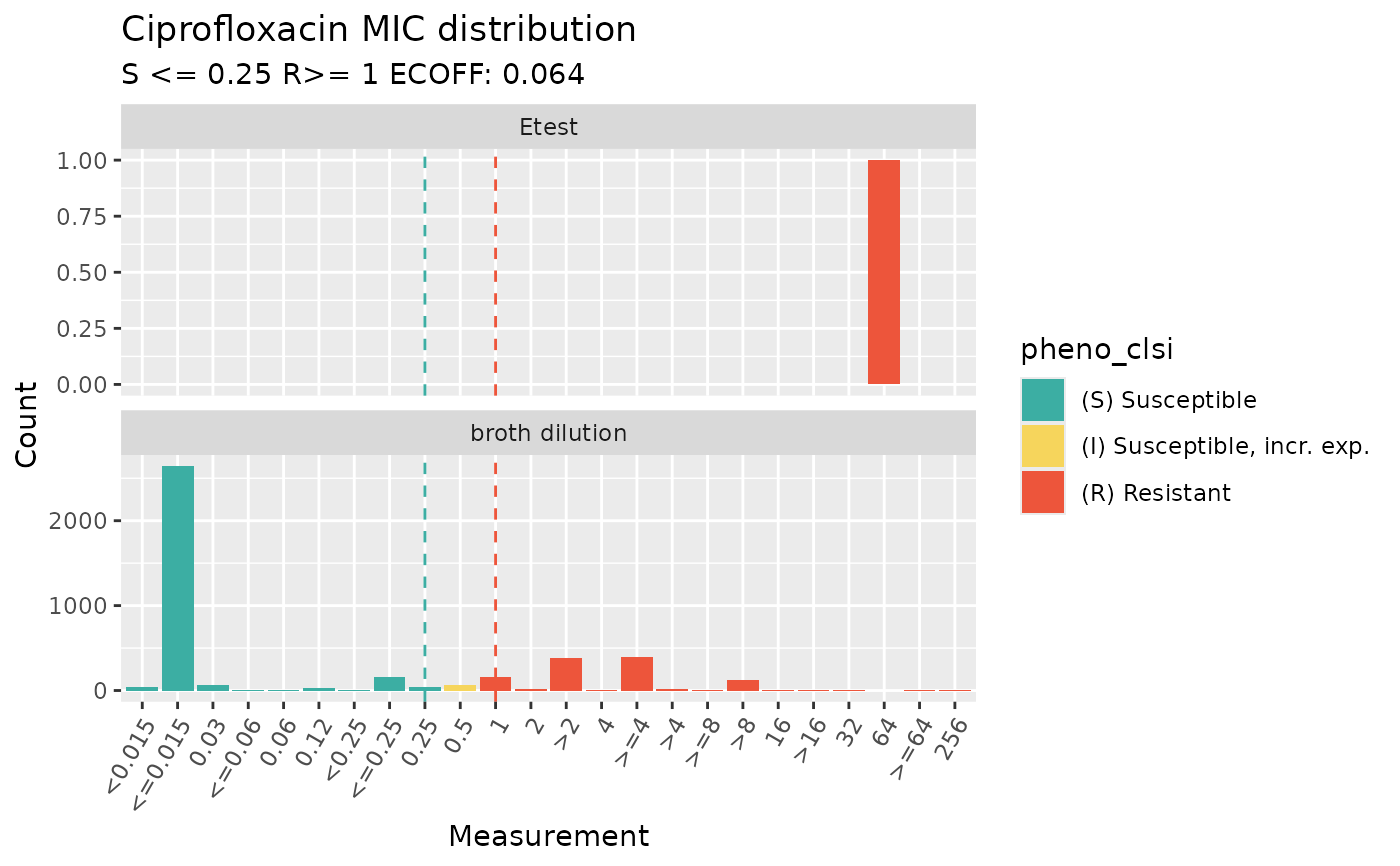

# facet by method
assay_by_var(
  pheno_table = ecoli_pheno, pheno_drug = "Ciprofloxacin",
  measure = "mic", colour_by = "pheno_clsi",
  species = "E. coli", guideline = "CLSI 2025",
  facet_by = "method"
)
#>   MIC breakpoints determined using AMR package: S <= 0.25 and R > 1
